8 Ch. Passive Mixer
Completed: August 2014
Retired: February 2022

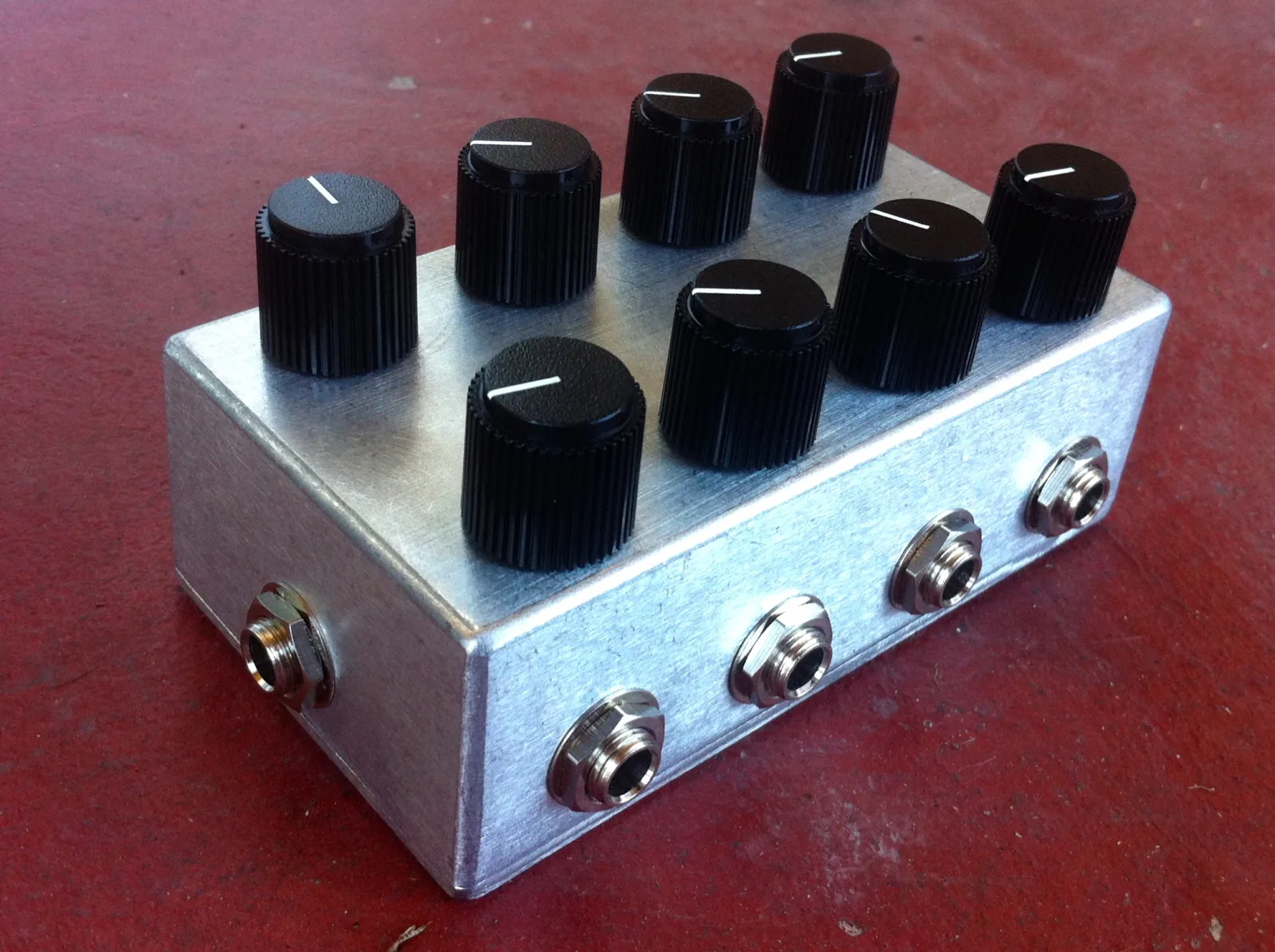

This is an eight-channel resistance mixer. Eight mono 1/4" inputs are combined to one mono 1/4" output with a volume control for each input.

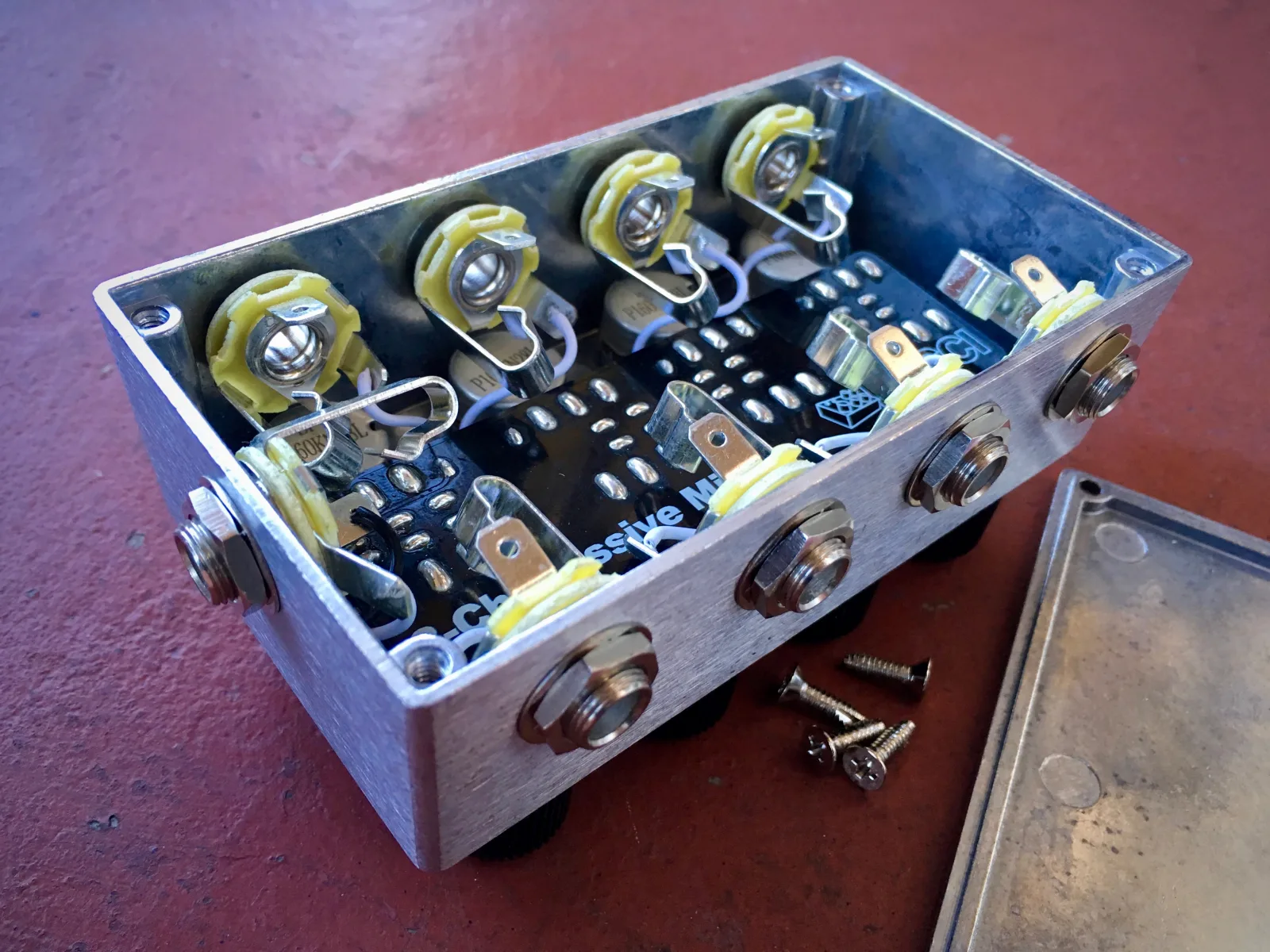

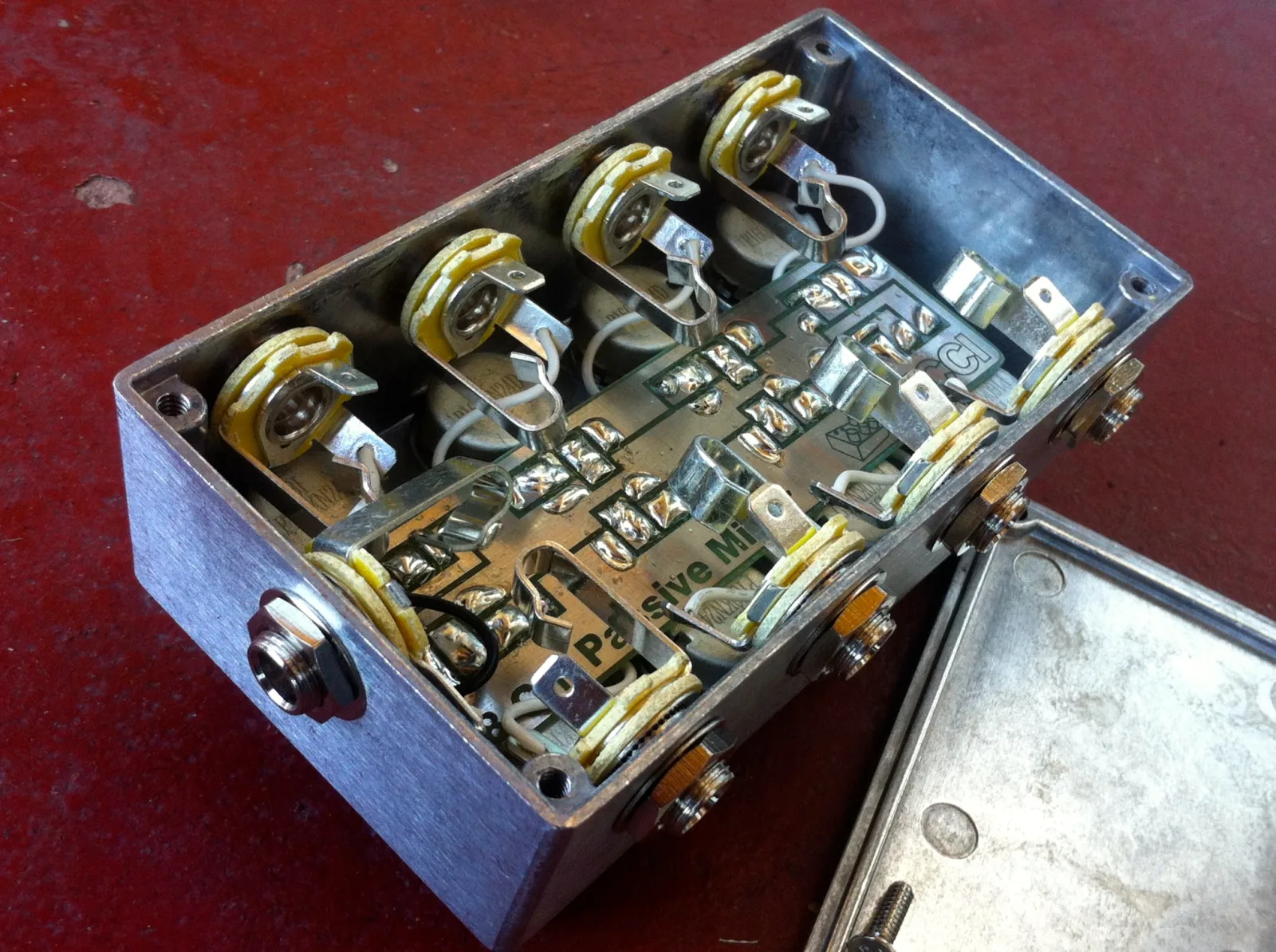

The circuit is completely passive and requires no power. It is housed in a rugged, raw aluminum die-cast case.

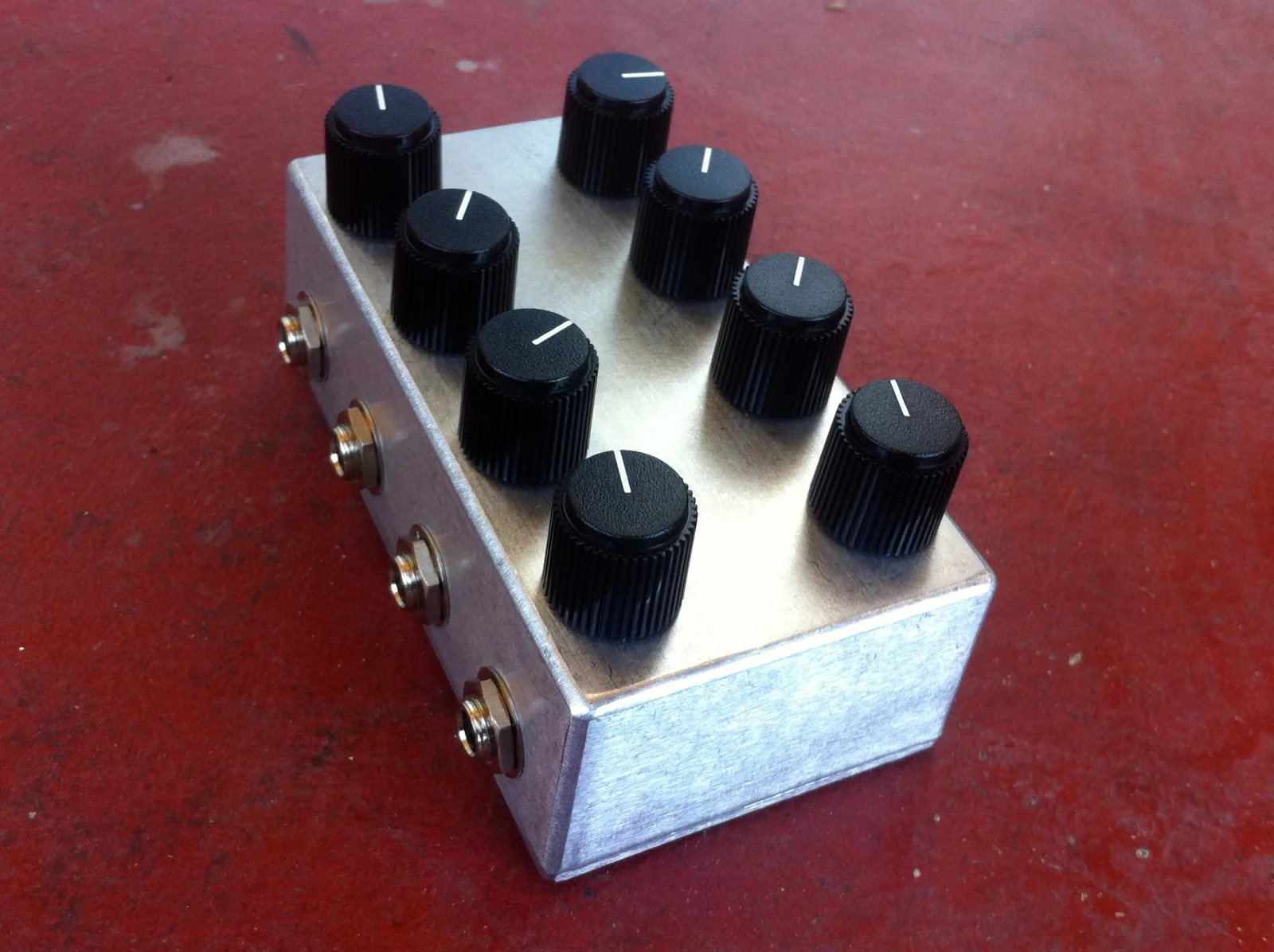

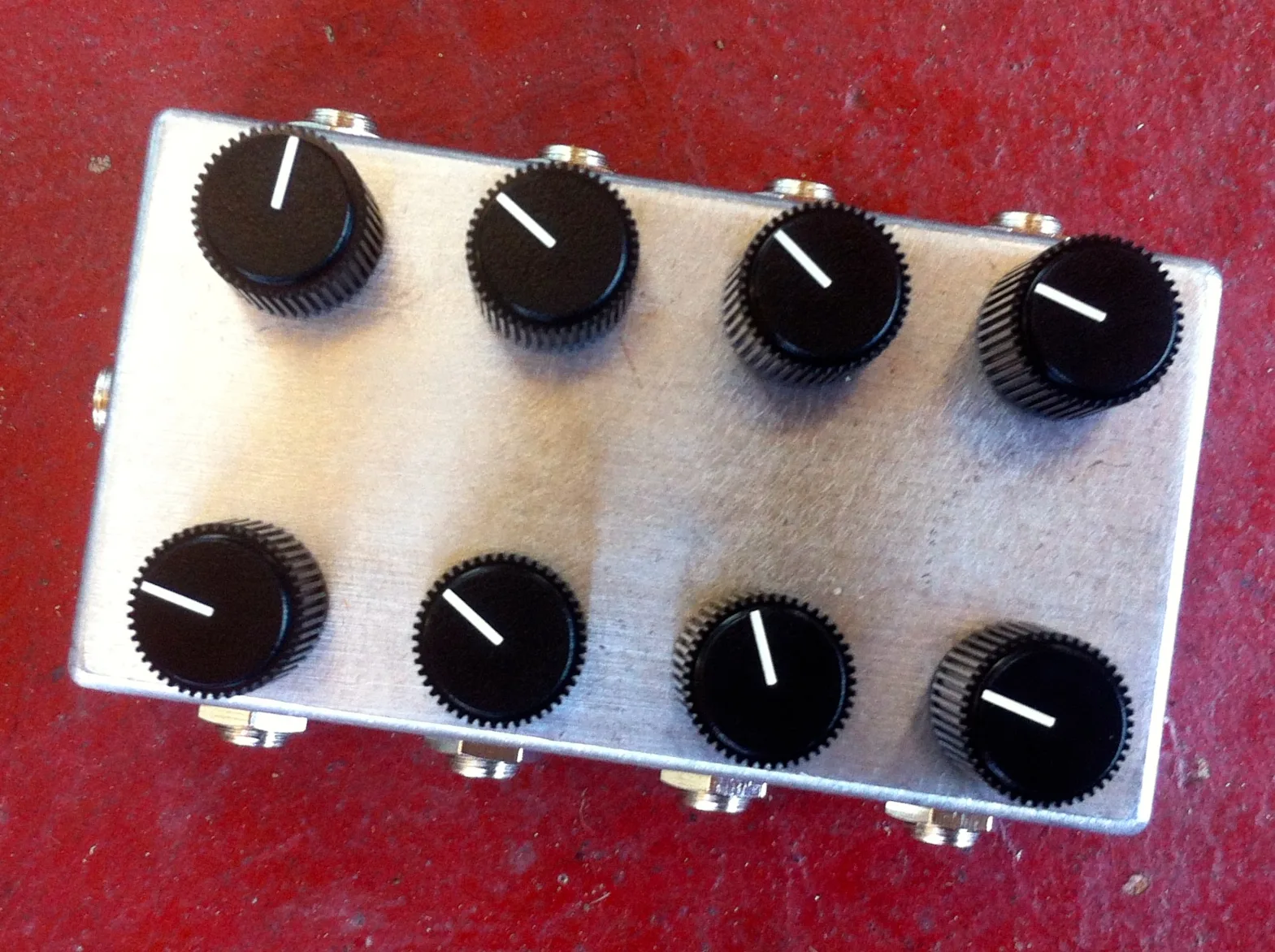

The design is quite versatile and can also be used in reverse as an 8-way splitter. Also, the knobs can be pulled off and reoriented effectively, moving the output to the top or bottom depending on what works best for your setup.
