Device0054

This is based on the stepped tone generator by Forest Mims also know as an Atari Punk Console, but with a few added bells and whistles. You have controls for frequency and pulse length, but also a volume control and low-pass filter. External light sources tweak the sound with a selectable photo-sensitive sensor.

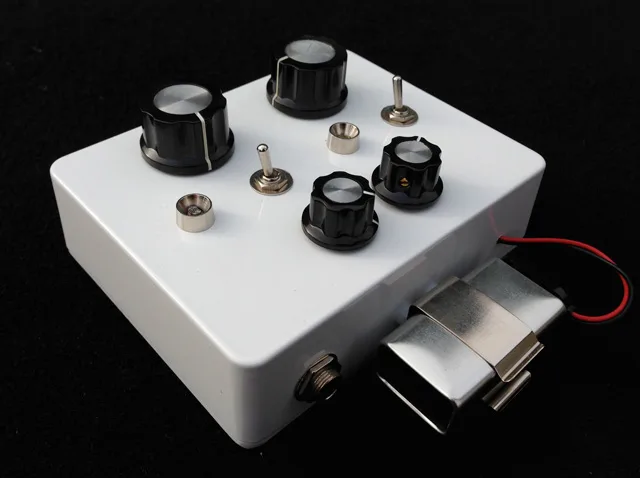

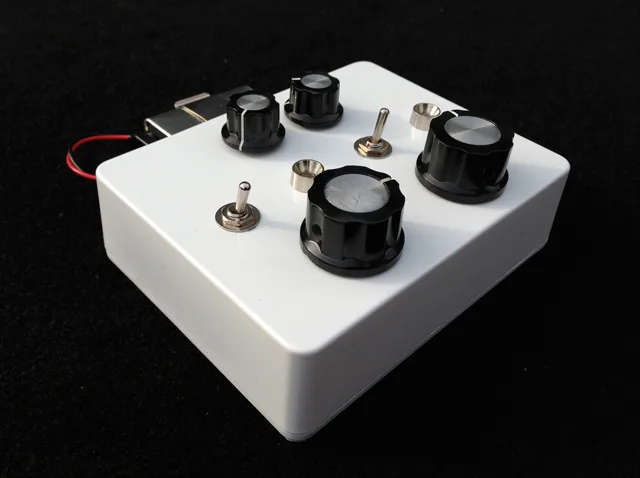

It is housed in a white aluminum die-cast case with reused knobs that have some cosmetic wear. It has a toggle on/off switch and LED power indicator .

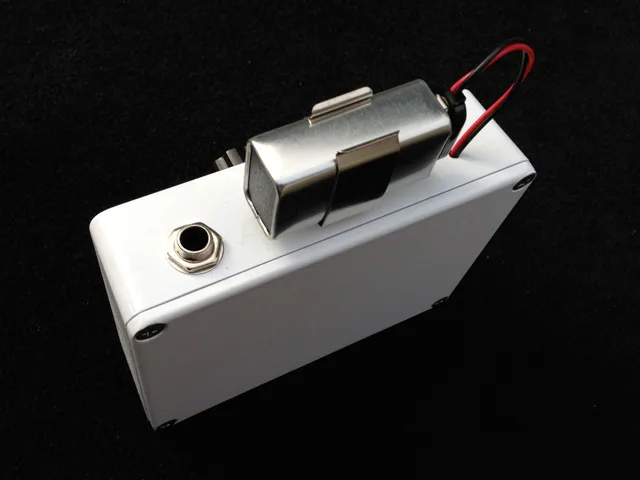

Audio Out: 1/4″ mono
Power: 9V Battery or 9V DC Center-Negative
