Device0052
Early Drone Jar
Completed: June 2012
Last Known Locations:
Grass Valley, CA
Los Angeles, CA
Wilmington, DE
Stuttgart, Germany
Boston, MA
Sofia, Bulgaria
Sagamihara, Japan
Arlington, VA
Baltimore, MD
Austin, TX
This design has since evolved into the Drone Jar.

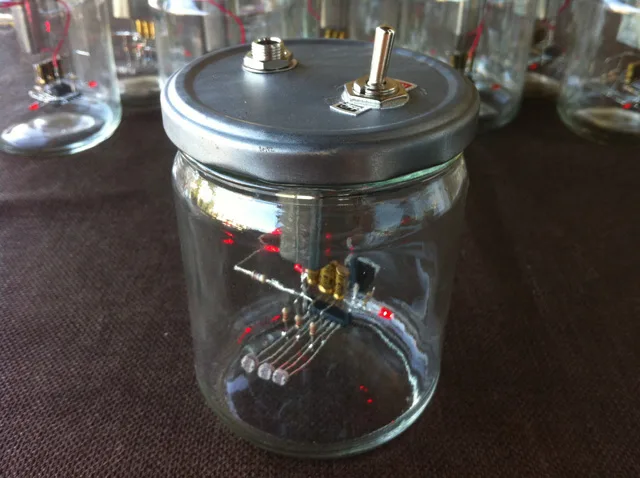

Built inside a reused jar, this drone synthesizer consists of three square-wave oscillators modulating against each other. The pitch of each is controlled by outside light sources hitting the three light sensors inside, so there is a lot of room for experimenting.

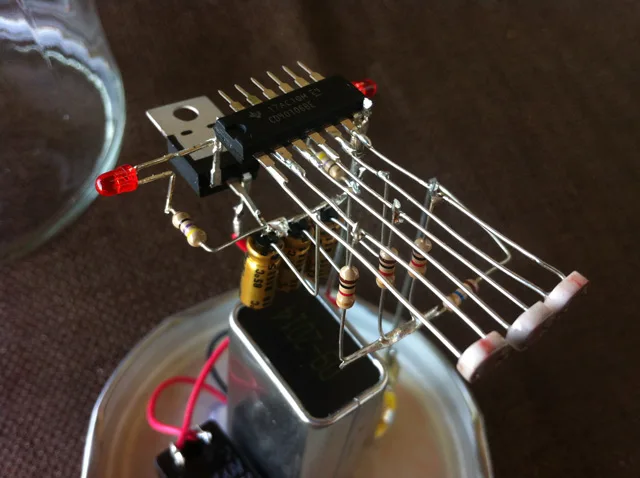

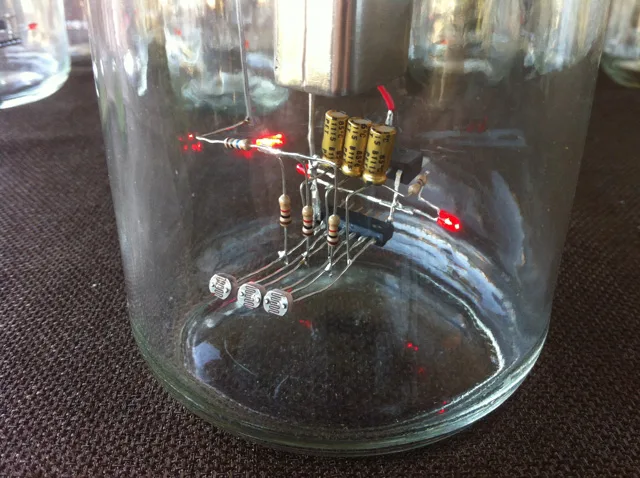

All of the components are built in a three-dimensional floating circuit that comes down from the lid of the jar.

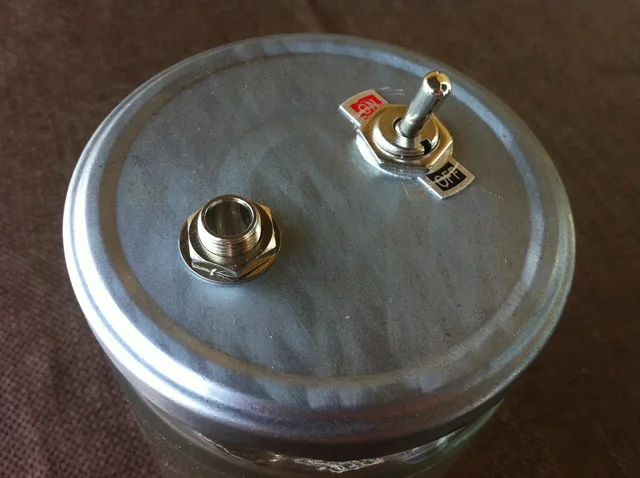

There is a single toggle on/off switch and two red LEDs indicate power.
Audio Out: 1/4″ mono
Power: 9V Battery
This was built in a numbered series of ten.
